Family Caravan

Elevation

Premium touring comfort.

Enquire about Elevation

Send us your details and we'll be in touch with more information.

Key highlights

Family-friendly layouts and sleeping options
Touring comfort with premium finishes
Tailored options for off-grid readiness
Built and supported in Australia

Quick specs

Range type: Premium family caravan
Build style: Customisable feature pathways
Travel focus: Longer tours and family adventures

Immersive walkthrough

Explore the Elevation in 3D

Take a virtual walkthrough to preview layout flow, interior space and key living zones before your showroom visit.

Drag to look around, move through the van, and use fullscreen mode for a closer inspection.

Elevation key specifications

Key specification	Details
Category	Caravans, Family
Body style	Full-height family caravan
Layout	Custom built with two to four bunks
Chassis ATM capability	Up to 4,500 kg on tandem axles
Published layout ATM	2,800–3,500 kg
Sleeping capacity	4–5 people
Axle configuration	Single or tandem axle

Popular Elevation layouts

Indicative specs based on the supplied Elevation spec sheet. Starting prices and shower configurations are not currently published by the manufacturer for each layout.

Design Your Own Layout

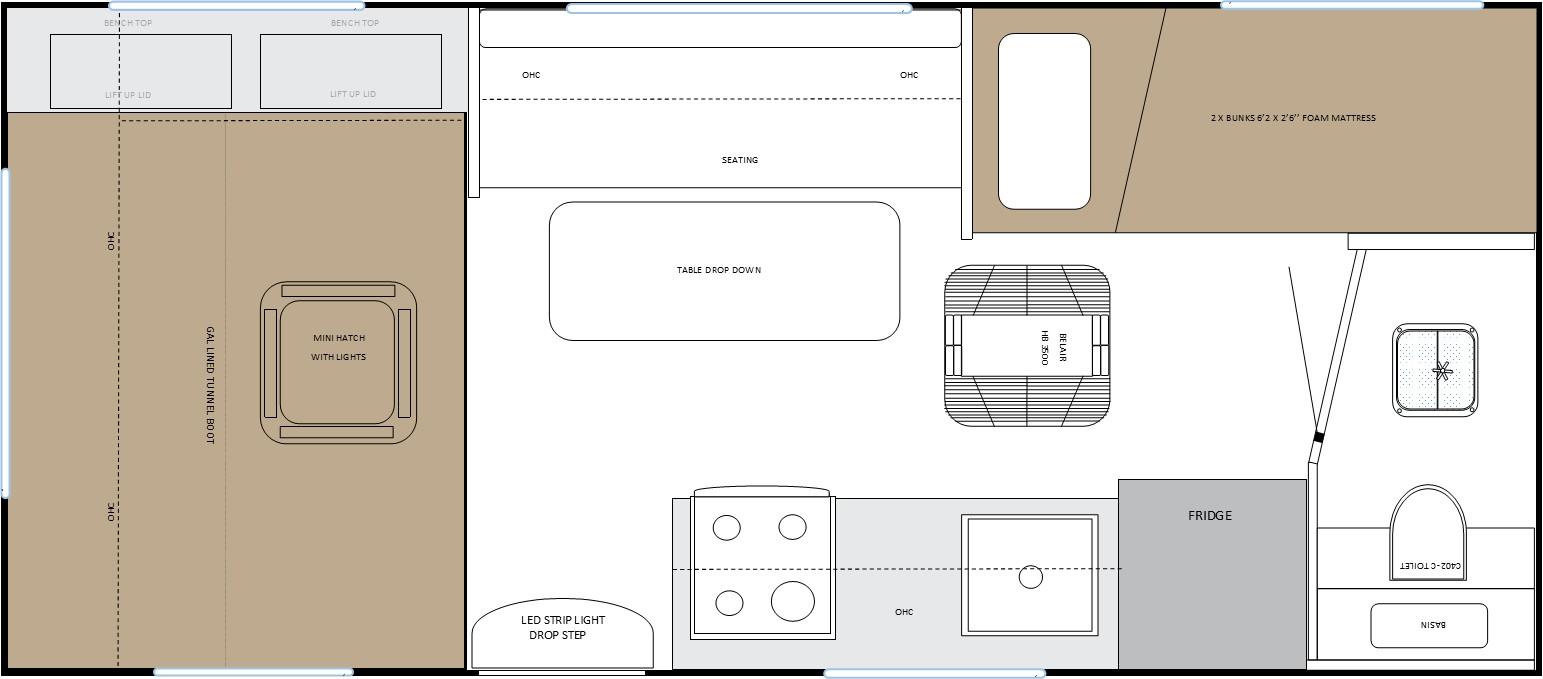

Explore Elevation layout plans

Select a layout size to preview the floorplan image.

Model	Bed / layout	Tare	Ball weight	ATM	Sleeps	Axles	Shower / ensuite	Starting price
17' Elevation	Queen bed and family bunk layout	2,250 kg	150 kg	2,800 kg	4–5	Single	Not published	Not published
18'6" Elevation	Queen bed and family bunk layout	2,350 kg	180 kg	3,000 kg	4–5	Single	Not published	Not published
20'6" Elevation	Queen bed and family bunk layout	2,650 kg	230 kg	3,500 kg	4–5	Tandem	Not published	Not published

Tare is caravan mass as built without payload. ATM is maximum permitted total caravan mass. Ball weight figures are indicative only.

Standard equipment

Appliances

175 L Thetford three-way fridge
25 L microwave with surround
Gas and electric hot-water system
Recessed four-burner grill
12 V CD/DVD player with four speakers
24-inch smart TV and bracket
Roof-mounted air-conditioner
12 V rangehood

Chassis

Five-year structural warranty
Australian 6-inch Silvershine chassis
Shine independent coil suspension
16-inch alloy rims with 245/75 all-terrain tyres
Up to 4,500 kg ATM rating on tandem-axle configurations
8-inch side-winder jockey wheel
12-inch electric brake drums
Four drop-down stabilisers
Underslung spare wheel

Construction

Meranti timber frame
One-piece fibreglass roof
One-piece insulated flooring
Aluminium composite (AZQ) exterior
500 mm checkerplate sides
High-density insulation
Double-glazed windows and blinds
Aussie Traveller 1900 radius door with midgee mesh
Coast to Coast locker doors
Leak, plumbing, electrical and weighbridge certification

Electrical

50 A battery management system
200 W solar panel
110 Ah deep-cycle battery
50 A Anderson charging plug
Brake-safe braking system
Anti-sway braking system
Reversing camera kit
Three LED annex lights and two rear spotlights
LED entry grab handle and step lights
12 V LED reading and roof lights
Two 16-inch roof hatches with LED lights
12 V toilet fan with LED light
240 V double power points
Wireless and 12 V USB charging points
12-pin flat trailer plug

Exterior

Aussie Traveller roll-out awning
Large galvanised tunnel boot
TV entertainment box and bracket
Picnic table
240 V 10 A power outlet
12 V electric winch to tailgate
Marine carpet on tailgate
Branded mud flaps

Interior

Two bunk beds listed as a base feature
Pillowtop queen mattress
High-quality laminate benchtops
Full-height splashbacks
Acrylic cupboards and doors
Soft-close drawers
Flush-mount handles and concealed overhead-cabinet latches
Full piano hinges and double struts on overhead cabinets
Choice of quality vinyl flooring and finishes
Chrome sink and tapware
Frosted-glass shower door
Ensuite toiletry cabinet, toilet-roll holder and two towel rails
Fire detector and fire blanket
Baldacci Enrico grab handle

Plumbing

Two 95 L fresh-water tanks
Brass pressure-limiting valve
12 V water pump
Tap on A-frame
BBQ gas bayonet fitting
Two 9 kg gas bottles
Swivel toilet

Note: The manufacturer page currently lists tailgate-related exterior equipment. Confirm model-specific inclusions for your selected Elevation floorplan.

Customisation options

Exterior

Electric step
Electric awning
Large TV box
Slide-out kitchen
Front storage box
Euro windows
External shower
Front window and shield
Composite colour selections
Bike rack
Hartal door
Additional annex lights
Stability control
Reversing camera

Interior

Mirror shower door
Large pull-out pantry
Concertina door
Adjustable table leg
Acrylic splashbacks
Laminate sink cover
Waterfall benchtop
CNC-look acrylic furniture
French gold, black or white hardware
Main-bed sizing upgrades
Portholes to robes
Genuine leather seating
Stereo upgrades
Single beds
Full oven
Instant hot water
Composting toilet
Fridge upgrades
Increased ceiling height
LED strip lighting

Off-Grid

Lithium battery upgrade
AC charging system
DC-to-DC charger
Additional solar capacity
Inverter
Additional water tanks
Grey-water tank
Gas or diesel heater
Inverter air-conditioner
Induction cooktop
12 V fans
Slide-out kitchen
Front toolbox

Off-Road

Upgraded chassis
Coupling upgrade
Airbag suspension
Pipe protection
Dust-reduction system
Tyre upgrade
Wheel upgrade
Chassis coating upgrade
Jerry-can holder
Stone guard
Checkerplate cover

Important information

Information, dimensions and weights are indicative and may change. Images may show optional equipment. The manufacturer’s Elevation page does not currently publish starting prices for listed layouts. Final pricing, bathroom configuration, specifications, payload, towing suitability, model-specific inclusions, warranty terms and availability should be confirmed directly with Dreamseeker Caravans.

Source reference: dreamseekercaravans.com.au/caravan/elevation
